Electrolytic Tinplate Coil
>
|
|
| Place of Origin | CHINA |
| Brand Name | Decho |
| Certification | Mill Test Certificate |
| Model Number | Electrolytic Tinplate Coil |
Our tinplate products serve a diverse range of essential purposes across various industries. Renowned for their versatility and reliability, tinplate sheets and coils are extensively used in canning and packaging applications. They provide an impermeable barrier against moisture and external contaminants, ensuring the freshness and safety of food and beverages.
In addition to the food industry, tinplate finds applications in the production of aerosol cans, paint cans, and industrial containers, safeguarding the integrity of their contents. Its exceptional corrosion resistance and formability make it an ideal choice for manufacturing intricate components in the automotive and electronics sectors.
With a wide spectrum of applications, our tinplate products consistently meet the stringent quality demands of global industries, ensuring the utmost protection and preservation of goods.

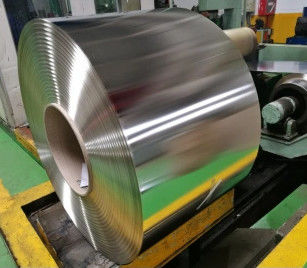

Electrolytic Tin Plate (ETP) Coils are produced from Black Plate products that run through a tin coating process.
| Thickness Range | : 0.15 mm – 0.35 mm |
| Width Range | : 700 mm – 1000 mm |
| Weight Range | : 500 KG – 13 MT |
| Tempers | : T1 – T5, DR8, DR9 |
| Finishes | : Bright, Matte, DWI, Stone, Shotblast |
| Standard | JIS / EN / ASTM Standard |
| Grades | Electrolytic Tinplate and Tin Free Steel according to JIS G3303, T1-T5, OR DR. |
Detailed Specification |
||
Annual Output |
768600 TONS |
|
STEEL DIMENSION |
THICKNESS |
0.18-0.55MM |
WIDTH |
730-1230MM |
|
Inlet strip steel thickness |
MAX |
3.0MM |
MIN |
2.0MM |
|
Strip Width |
MAX |
1230MM |
MIN |
730MM |
|
Pickling inlet speed |
MAX |
350M/MIN |
Outlet Finished thickness |
Tinplate |
Max 0.55mm |
Min 0.18mm |
||
CRC |
Max 0.80mm |
|
Min 0.30mm |
||
| Supply Capacity: | More Than 5000 Tons per month |
| Minimum Quantity: | 20 Tons |
| Trade Terms: | FOB,CFR,CIF |
| Payment Terms: | T/T, LC |
| Standard: | AiSi, ASTM, bs, DIN, GB, JIS |
| Grade: | SPCC, MR |
| Width: | 600-1250mm |
| Thickness: | 0.15-0.45mm |
| Hardness: | T2-DR9 |
| Tin Coating: | 1.1/1.1, 1.4/1.4, 2.0/2.0, 2.8/2.8, 5.6/5.6, 8.4/8.4, 11.2/11.2 |
| Surface: | Stone finish, Bright finish, Matt finish |
| Coated: | Offer coated services |
