0.65mm Galvanized Corrugated Steel Sheet Panels Z150 S320GD
  • 0.65mm Galvanized Corrugated Steel Sheet Panels Z150 S320GD
  • 0.65mm Galvanized Corrugated Steel Sheet Panels Z150 S320GD
  • 0.65mm Galvanized Corrugated Steel Sheet Panels Z150 S320GD

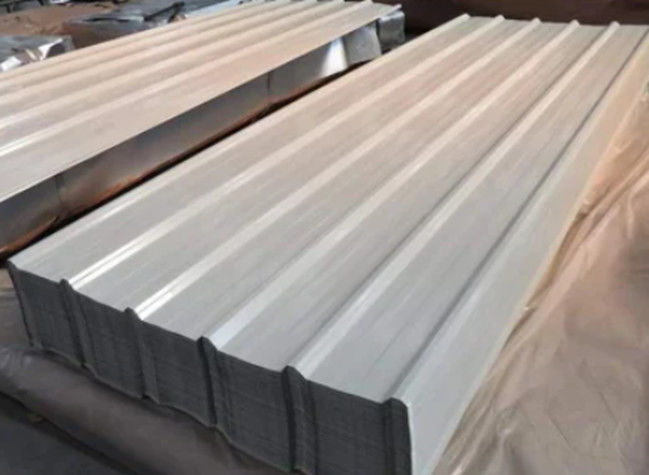

0.65mm Galvanized Corrugated Steel Sheet Panels Z150 S320GD

0.65mm Galvanized Corrugated Steel Sheet Panels Z150 S320GD

Place of Origin CHINA
Brand Name DECHO
Certification MILL TEST CERTIFICATE
Model Number Corrugated sheet Z150
Product Details
Material Grade:
S320GD
Thickness:
0.65mm
Finished Width:
665~1000mm
Application:
Construction, Decoration, Industry, Machinery, Etc.
Package:
Standard Export Package
Standard:
ASTM, GB, JIS
Highlight:

0.65mm Corrugated Steel Sheet

,

0.65mm galvanized corrugated panels

,

galvanized corrugated panels Z150 S320GD

Payment & Shipping Terms
Minimum Order Quantity
16 TONS
Price
USD 650~850
Packaging Details
Steel pallet package
Delivery Time
30~45days
Payment Terms
L/C, T/T
Supply Ability
500 tons/day
Product Description
GI hot-dip Galvanised Zinc signal white steel color-coated Z150 S320GD 0.65mm Painted Corrugated Wave Tile Roofing Sheet

Corrugated plates, also called pressure plates, are color coated steel sheets, galvanized steel sheets, and other metal sheets rolled and cold bent into various corrugated shapes.

It is widely popularized and applied due to its light weight, high strength, rich color and gloss, convenient and quick construction, earthquake resistance, fire resistance, rain resistance, long service life, and maintenance free. Steel structure housing panel, mobile housing panel, etc.

(1) Beautiful new shapes, rich colors, strong decorative properties, flexible combinations, can express different architectural styles



(2) Light weight (6-10kg/m²) high strength (yield strength 250-550MPa), good skin stiffness, good water repellent earthquake resistance



(3) High quality of factory products



(4) Convenient design and construction, reduce the burden of installation and transportation, shorten construction time



(5) Pressure-resistant steel plate is environmentally friendly construction material and recyclable



Applications
Prefabricated Homes, Steel Homes, Mobile Homes, Modular Homes, Villas, Bungalow Designs, Portable Homes, Ready Built Homes, Kiosks, Steel Buildings
Container manufacturing
Household appliances and furniture
Vehicle and ship manufacturing others, such as mechanical structural parts, motor manufacturing shells.

Material PPGI Color Coated Galvanised Zinc Roofing Sheet
Standard JIS G3302, JIS G3313, ASTM A653, GB ect.
Grade SGCC SGCD SGCH DX51D/52D/53D
Thickness 0.125-0.8mm
Width 650-1000mm
Length 4 meters,or as requirement
Zinc-coating 60g/m2-240g/m2
Type Wave
Technique Cold rolled-hot dipped galvanizing-corrugated
Terms Raw material width 762mm to 665mm(after corrugated) and 9 wave.
Raw material width 914mm to 800mm(after corrugated) and 11 wave.
Raw material width 1000mm to 890mm or 900mm(after corrugated)
and 12 or 14 wave.
Shipment Terms Containers or bundles by sea,one 20" container can load about 21-25 tons,
one 40" container can load about 23-26tons
Surface Treatment

Mini/regular/big/zero spangle, ,Chromate treatment/ chromate-free treatment/untreated Unoile/ oiled ,anti-fingerprint/Unanti-fingerprint,

coating,different colors… etc.
Tolerance Thickness: +/-0.01mm
Width:+/-1mm
Feature excellent performance of decoration, corrosion resistance etc.



0.65mm Galvanized Corrugated Steel Sheet Panels Z150 S320GD 0

0.65mm Galvanized Corrugated Steel Sheet Panels Z150 S320GD 1



0.65mm Galvanized Corrugated Steel Sheet Panels Z150 S320GD 20.65mm Galvanized Corrugated Steel Sheet Panels Z150 S320GD 30.65mm Galvanized Corrugated Steel Sheet Panels Z150 S320GD 4
