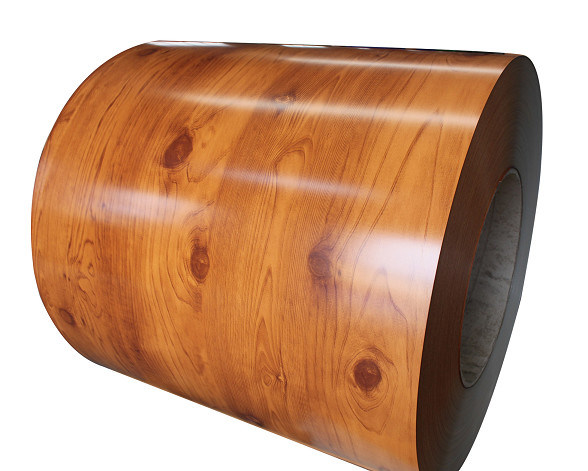

Customized Medium Hard HRB60-85 PPGI/PPGL Coil Color Coated Coil Z275 PVDF DX51D

Customized Medium Hard HRB60-85 PPGI/PPGL Coil Color Coated Coil Z275 PVDF DX51D

Customized Medium Hard HRB60-85 PPGI/PPGL Coil Color Coated Coil Z275 PVDF DX51D

Place of Origin	China
Brand Name	Decho Building Materials
Certification	MILL TEST CERTIFICATE
Model Number	S320GD PRE-PAINTED GAVANIZED STEEL

Product Details

Surface Color:

Wood Grain

Thickness:

0.5mm~1.2mm

AZ-coating:

AZ 150~275 G/㎡

Steel Grade:

S320GD

STEEL GRADE:

DX51D

PAINT SYSTEM:

PVDF

Highlight:

Color Coated Coil Z275

,

PVDF Color Coated Coil

,

HRB60 PPGL Steel Coil

Payment & Shipping Terms

Minimum Order Quantity

50 TONS

Price

USD 780~1050

Packaging Details

Standard Exporting Packing(Eye to Side) , No pallet Vertical Packing (Eye to Sky) with Wooden Pallet, Horizontal Packing (Eye to Side) with Wooden Pallet

Delivery Time

30~45days

Payment Terms

L/C, T/T

Supply Ability

500 tons per day

Product Description

Customized medium hard(HRB60-85) PPGI/PPGL Coil Printech Color Coated Coil

PPGL Steel Coil Z275 PVDF DX51D

Product details:

PPGL, also known as coated laminated coil or color-coated laminated coil, is a flat steel product with a protective decorative coating. The polymer coating is available in a wide range of colors, matte, glossy or with natural decorative finishes (granite, wood, etc.). Organically coated galvanized steel is corrosion-resistant, has excellent mechanical properties and can be formed, pressed or stamped.

PVDF Color Coated Sheet adopts PVDF polyester coating with good durability, adopts high molecular weight resin, with less polymer branched chain, stable bonding, not easy to photolysis, so it is not easy to chalking and high gloss. The main performance of high weathering polyester is strong weather resistance and corrosion resistance, mainly used for long sunshine time, high dryness, or large temperature difference between day and night, strong humidity and other harsh areas, wide range of uses.

Advantages:

Clear and realistic grain, easy processing and molding, corrosion resistance, energy saving and environmental protection, easy to install, safety, etc.

Application areas:

Widely used in office buildings, commercial spaces, hospitals, star hotels, airports, subways and other large public buildings.

Steel Grade:

EN10346-DX51D/ DX52D/ DX53D, S250GD/280GD/350GD/550GD, ASTM A527M, CS-B, SS255-SS550

Paint Brand:

Valpar, AkzoNobel, PPG, Beckers

Paint Coating Patterns:

Gloss Colors - RAL Code

1)Pre-sale Service
1.Sample can be offered.
2.We have 8 year experience of design, manufacture and sell lingerie, we cherish every order from
our honor.
3.We have full stock,and can deliver within short time.Many styles for your choices.
4.OEM and ODM order are accepted, Any kind of logo printing or design are available.
5.Good Quality + Factory Price + Quick Response + Reliable Service
6.All of our products are produce by our professional workman and we have our high-work-effect foreign
trade team, you can totally believe our service.
2) After you choose
1.We will count cheapest shipping cost and make invoice at once.
2.Check quality again, then send out to you at 1-2 working day after your payment,
3. Email you the tracking no, and help to chase the parcels until it arrive you.
3) After-sale choose
1. We are very glad that customer give us some suggestion for price and products.
2. If any question,please contact with us freely by E-mail or Telephone.

Thickness	GI 0.20mm~1.70mm GL 0.20mm~3.0mm
Width	600mm~1500mm
Zink-Coating	Z40~Z275g/㎡ AZ30~AZ200g/㎡
Paint Structure	2/1, 2/2, 3/2, 3/3
Paint Coating	Top side 15μm~55μm Back side 5μm~30μm

Thick	0.14-2.0 mm
Width	600-1500 mm
Coil ID	508 / 610MM
Coil Weight	3-8 Tons
Type Of Substruate	Hot dipped galvanized steel coil,galvalume steel coil,cold rolled steel
Coating Types	Top paint:PVDF,HDP,SMP,PE,PU Primer paint:Polyurethane,Epoxy,PE Back paint:Epoxy,Modified polyester
Standard	ASTM-A653; JIS G3302; EN10147;etc
Payment Terms	T/T, LC, Western Union, Paypal, O/A, DP
Regular Order	25 tons or one container, for less quantity, to contact with us for details
Hardness	Soft hard(HRB60),medium hard(HRB60-85),full hard(HRB85-95)
Surface Structure	Regular spangle,Minimum spangle, Zero spangle, Big spangle
Surface Treatment	Chromated/Non-Chromated, Oiled/Non-oiled, Skin pass

Structural Grades	C	Mn	P	S	Al	Si	Cu	Ni	Cr	Mo	V	Cb	Ti	N
30,33,36,40	0.25	0.9	0.035	0.04			0.2	0.2	0.15	0.06	0.008	0.008	0.025
36T2,45-80	0.25	1.35	0.035	0.04			0.2	0.2	0.15	0.06	0.008	0.008	0.025
45T2	.02- 0.08	.30- 1.0	.03- .07	0.025	.02- .08	0.6	0.2	0.2	0.15	0.06	0.008	0.008	0.025	.01- .03

HSLA Grades	C	Mn	P	S	Al	Si	Cu	Ni	Cr	Mo	V	Cb	Ti	N
45C1	0.22	1.35	0.04	0.04			0.2	0.2	0.15	0.06	0.005	0.005	0.005
45C2	0.15	1.35	0.04	0.04			0.2	0.2	0.15	0.06	0.005	0.005	0.005
50C1	0.23	1.35	0.04	0.04			0.2	0.2	0.15	0.06	0.005	0.005	0.005
50C2 & 55C2	0.15	1.35	0.04	0.04			0.2	0.2	0.15	0.06	0.005	0.005	0.005
55C1	0.25	1.35	0.04	0.04			0.2	0.2	0.15	0.06	0.005	0.005	0.005
60C1 & 65C1	0.26	1.5	0.04	0.04			0.2	0.2	0.15	0.06	0.005	0.005	0.005
60C2 & 65C2	0.15	1.5	0.04	0.04			0.2	0.2	0.15	0.06	0.005	0.005	0.005
70C1	0.26	1.65	0.04	0.04			0.2	0.2	0.15	0.16	0.005	0.005	0.005
70C2	0.15	1.65	0.04	0.04			0.2	0.2	0.15	0.16	0.005	0.005	0.005

Common Grades	C	Mn	P	S	Al	Si	Cu	Ni	Cr	Mo	V	Cb	Ti	N
CSA	0.1	0.6	0.03	0.035			0.2	0.2	0.15	0.06	0.008	0.008	0.025
CSB	0.02-.15	0.6	0.03	0.035			0.2	0.2	0.15	0.06	0.008	0.008	0.025
CSC	0.08	0.6	0.1	0.035			0.2	0.2	0.15	0.06	0.008	0.008	0.025
BH	0.012	1.5	0.12	0.03			0.2	0.2	0.15	0.06	0.008	0.008	0.025
FSA	0.1	0.5	0.02	0.035			0.2	0.2	0.15	0.06	0.008	0.008	0.025
FSB	0.02-.15	0.5	0.02	0.03			0.2	0.2	0.15	0.06	0.008	0.008	0.025
DDS	0.06	0.5	0.02	0.025	.01		0.2	0.2	0.15	0.06	0.008	0.008	0.025
EDDS	0.02	0.4	0.02	0.02	.01*		0.2	0.2	0.15	0.06	0.1	0.1	0.15
