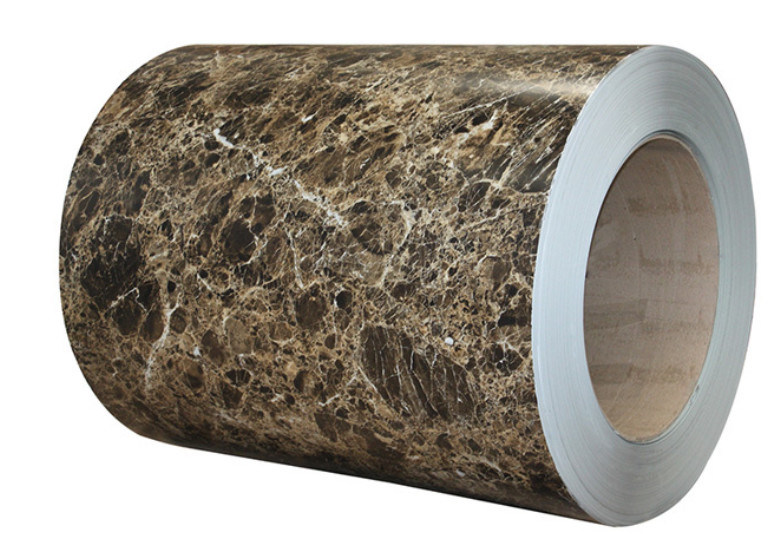

Color Coated Aluminum Coil
>
|
|
| Place of Origin | China |
| Brand Name | Decho |
| Certification | ISO9001 |
| Model Number | Aluminium Coil 3003H24 |
Introduction:
The surface coating of aluminum sheets utilizes advanced technology from Korea and a high-precision four-color printing unit. The common types of color coatings include fluorocarbon (PVDF) and polyester (PE). These coatings offer vibrant, realistic colors and stable performance with high corrosion resistance. After special treatment, the surface quality of these sheets can be guaranteed for up to 30 years. Given that aluminum has the lowest weight per unit volume among metal materials, color-coated aluminum sheets have become highly popular in the building decoration industry.
Application:
1. Building Decoration Materials:
- Aluminum composite panels
- Aluminum honeycomb panels
- Roof wave boards
- Fireproof integrated wall panels
- Aluminum ceilings
- Blinds
- Rolling doors and garage doors
- Awnings
- Water gutters
2. Electronic Appliances:
- Computer cases
- Electric appliance panels
3. Home Appliances and Furniture:
- Lighting fixtures
- Furniture components
Characteristics:
Color-coated aluminum sheets in coils are known for their long service life, light weight, excellent surface finish, and high recycling value. These properties provide significant economic benefits, meeting the urgent demands of modern society for economic growth and environmental protection.
Detailed Parameters:
| PRODUCT CATEGORY | Polyester PE Color coated Aluminum | Fluorocarbon / PVDF Color coated Aluminum |
| Aluminum thickness | 0.30-2.0mm | 0.30-2.0mm |
| Paint coating | Top ≥15μm | Top ≥25μm |
| thickness | Back≥5μm | Back≥5μm |
| MEK | ≥100 | ≥200 |
| T bending | ≤2T | ≤2T |
| Impact | 50kg.cm | 50kg.cm |
| Adhesion | 0 Grade | 0 Grade |
| Pencil Hardness | ≥2H | ≥2H |
| Boiling water proof | No change within 2 hours | No change within 2 hours |
| Typical Alloy | 1100, 1050, 1060, 3003, 3004, 3005, 3104, 3105 | |
| Typical Status | H14, H16, H18, H24, H26 | |
| Products | Colored aluminum coil |
| Size | CUSTOMIZATION. Special sizes can be produced here. |
| Standard | GB/T 3880--2012 or ASTM B209 |
| Alloy | 1050 1060 1100 3003 3004 3105 5052 |
| Temper | O H12 H14 H16 H18 H19 H22 H24 H26 H28 H112 H32 |
| Thickness range | 0.1-3.0mm |
| Paint | PE, PVDF, Epoxy |
| Paint thickness | As customers' request. Usually, one layer is 15-18mic, and two layers are 25-28mic. |
| Color | As customers' request. Any color will be okay. Solid color, metallic color etc. |
| Film | Film coat to protect paint. |
| MOQ | Depends on size. Usually 3-6tons. |
| Production process | DC or CC |
| Certificate of Origin | CO, Form E, Form A, etc. |
1060 Pure Aluminium Series
1060 material aluminium plate belongs to the pure aluminium series of products, the density of 2.71, the material is relatively soft, ductility is good, with excellent forming and processing characteristics, high corrosion resistance, long service life, low cost, but its strength and rigidity is low.
3003 Aluminium-Manganese Alloy Series
3003 aluminium sheet belongs to the aluminium-manganese alloy series, with a density of about 2.73. Due to the manganese alloying element (content between 1-1.5%), the material's hardness and tensile properties are better than those of Series 1. This product has excellent anti-rust properties and is also known as "anti-rust aluminium".
3004 Aluminium-magnesium-manganese alloy series
3004 material aluminium plate contains manganese elements, but also added magnesium elements, the content of 0.8-1.3%, so 3004 is usually also known as "aluminium-magnesium-manganese", the strength is higher than 3003, excellent formability and good corrosion resistance, is the most widely used coloured aluminium products, is widely used in airports, stations, stadiums and other public buildings. Public buildings.
5052 Aluminium-magnesium alloy series
The density of 5 series aluminium-magnesium alloy is 2.68, and the alloy composition is mainly magnesium, the content is between 3-5%, the main features are low density, high tensile strength and high elongation. Due to the low density and light weight, 5 series aluminium-magnesium alloy is usually used in the aviation field, known as "aviation aluminium". Tensile strength and other performance is higher than 3 series, of course, the price is relatively high, commonly used materials for the 5052 series.
Paint Suppliers & Partners:
We only choose the top-level paint suppliers for our pre-painted steel coils and sheets,
AkzoNobel, Sherwin-Williams Valspar, Beckers, PPG Industries, Nippon, KCC are our solid paint suppliers.
Their best paint materials decide our steel coils quality.
Patterns / Colorful Customzied Advantages:
Package & Delivery Shipment :
Delivery time: 30 days deliver to loading port
Shipment Methods: Container, Breakbulk, Railway, Trucks
