Corrugated Steel Sheet
>
|
| Place of Origin | China |
| Brand Name | Decho |
| Certification | ISO9001 |
| Model Number | Grade 50 / S350GD |
Usage of Colour Coated Coils:
Colour coated coils are characterized by their lightweight nature, aesthetic appeal, and excellent anti-corrosion properties. They are designed for direct processing and are available in a range of colors including grey, white, sea blue, and brick red. These coils find extensive application across various industries:
Users can select the appropriate coating based on their specific application needs, ensuring optimal performance and longevity of colour coated coils in diverse environments and industries.
Coating Structures:
Type of coating structure
2/1: Coat upper surface twice, lower surface once, bake twice.
2/1M: Coat upper and lower surfaces twice, bake once.
2/2: Top and bottom surfaces are coated twice each and baked twice.
Usage of different coating structures:

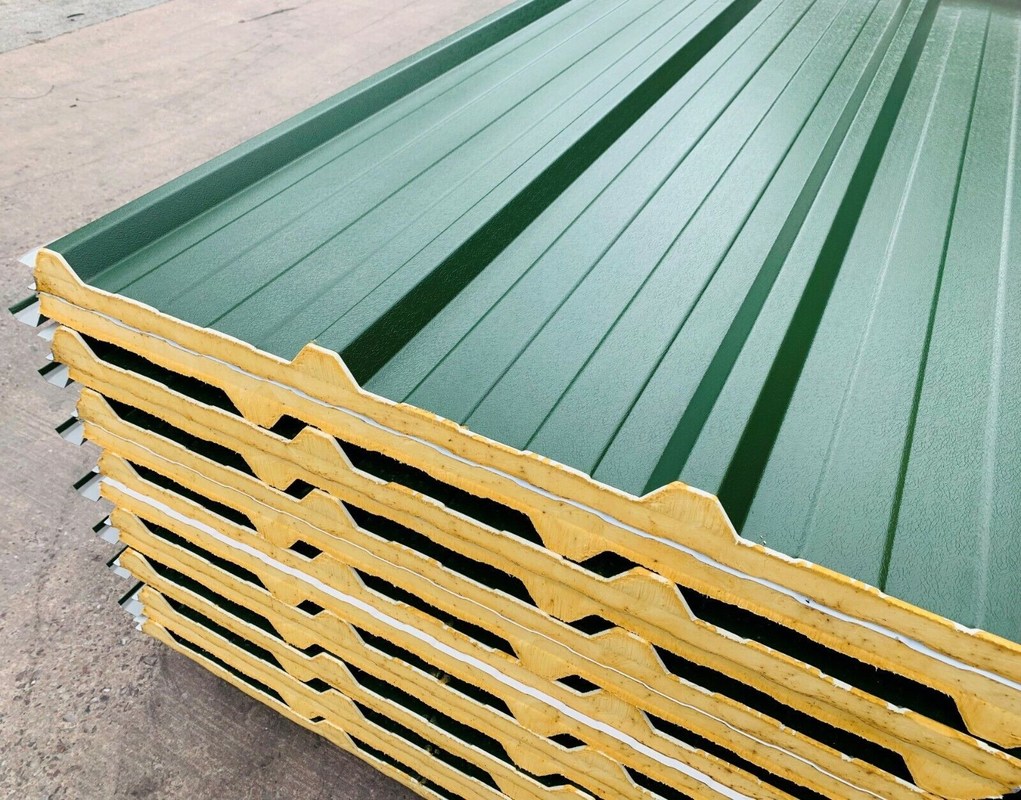

2/1: The corrosion resistance and scratch resistance of single layer back coating is poor, but it has good adhesion, mainly used for sandwich panels.
It is mainly used for sandwich panels;
2/1M: backcoat with good corrosion resistance, scratch resistance and moulding properties, good adhesion, suitable for single-layer compression moulding panels.
2/1M: good corrosion resistance, scratch resistance and moulding properties, good adhesion, suitable for single-layer pressboards and sandwich panels.
2/2: double-layer backing paint with good corrosion resistance, scratch resistance and processability, mostly used for single-layer pressboards, but with good adhesion.
Most of them are used for single-layer moulding board, but its adhesion is not good, and it is not suitable for sandwich board.
| Pre-Painted Galvalume Steel Coils | |||
| Commercial Quality Steel | ASTM A755M-03 | EN10327-2004 | JIS G 3322:2012 |
| CS | DX51D+AZ | CGLCC | |
| Structural Quality Steel | SS GRADE 230 | S220GD+AZ | CGLC340 |
| SS GRADE 255 | S250GD+AZ | CGLC400 | |
| SS GRADE 275 | S280GD+AZ | CGLC440 | |
| SS GRADE 340 | S320GD+AZ | CGLC490 | |
| SS GRADE 550 | S350GD+AZ | CGLC570 | |
| S550GD+AZ | |||
| Pre-Painted Galvanized Steel Coils | |||
| Commercial Quality Steel | ASTM A755M-03 | EN10327-2004 | JIS G 3312:2012 |
| CS | DX51D+Z | CGCC | |
| Structural Quality Steel | SS GRADE 230 | S220GD+Z | CGC340 |
| SS GRADE 255 | S250GD+Z | CGC400 | |
| SS GRADE 275 | S280GD+Z | CGC440 | |
| SS GRADE 340 | S320GD+Z | CGC490 | |
| SS GRADE 550 | S350GD+Z | CGC570 | |
| S550GD+Z | |||
| SPECFICATION | |||
| PRE-PAINTED GALVANIZED STEEL COIL | PRE-PAINTED ALUZINC STEEL COIL | ||
| Thickness | 0.15MM--1.50MM(BMT) | 0.15MM--1.50MM(BMT) | |
| Width | 900MM-1340MM | 900MM-1340MM | |
| Zinc/AZ | 30g/m2-275g/m2 | 30g/m2-185g/m2 | |
| Base Metal | Galvanized Steel Coil | Galvalume/ Aluzinc Steel Coil | |
| Paint Coating System | POLYESTER(PE),RMP, SMP,Super-SMP, HDP,Super HDP, PVDF | ||
| Color | RAL / Customized | ||
| Coil weight | 1.5MT-10MT | ||
| Coil ID | 508MM OR 610MM | ||
| * HARD QUALITY GALVANIZED STEEL(HRB75-HRB90) AVAILABLE ON CUSTOMER'S REQUEST | |||
| Coating performance | |||||||
| CATEGORY | T Bending | Impacting | Salt spray test(hours) | MEK | Hardness | Gloss 60° | Color Tolerance ΔE |
| PE | ≤3T | ≥9 | ≥500 | ≥100 | ≥F | 10-85 | ≤0.8 |
| SMP | ≤3T | ≥9 | ≥500 | ≥100 | ≥F | 10-85 | ≤0.8 |
| HDP | ≤2T | ≥9 | ≥1000 | ≥100 | ≥HB | 10-85 | ≤0.8 |
| PVDF | ≤2T | ≥9 | ≥1000 | ≥100 | ≥HB | 10-85 | ≤0.8 |
We only choose the top-level paint suppliers for our pre-painted steel coils and sheets,
AkzoNobel, Sherwin-Williams Valspar, Beckers, PPG Industries, Nippon, KCC are our solid paint suppliers.
Their best paint materials decide our steel coils quality.
Delivery time: 30 days deliver to loading port
Shipment Methods: Container, Breakbulk, Railway, Trucks
