Color Coated Aluminum Coil
>
|
|
| Place of Origin | China |
| Brand Name | Decho Building Materials |
| Certification | A Aertificate |
| Model Number | A |

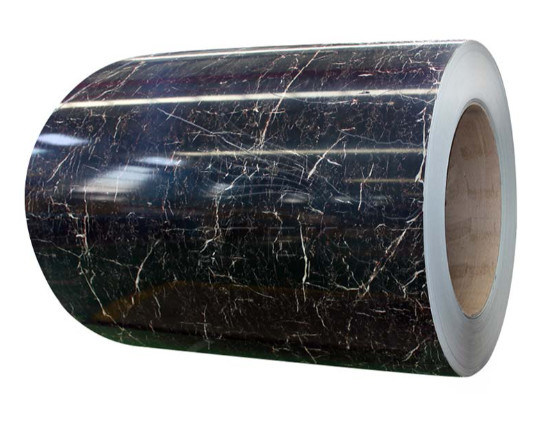

Printed Color Coated Steel and Aluminum Coil
Printed color coated plates offer decorative effects such as wood grain, brick grain, camouflage, and marble.
The printing process for color coated coils typically involves gravure printing. This method uses steel rollers laser-engraved with desired patterns to transfer ink onto the surface of the steel plate.
Initially, the substrate undergoes pre-treatment including degreasing, cleaning, and passivation. After this, a layer of matching color primer is applied to the steel plate surface. Depending on the application, primers may include polyester, polyurethane, and other coatings. After drying and curing the primer, ink is applied through printing. Printing complexity ranges from single color to multi-color patterns. Once the ink is dried and cured, a varnish coating follows, which can be polyester, High Durable Polyester (HDP), fluorocarbon PVDF, or other types.
For higher printing quality requirements, such as fluorocarbon printed color coated panels, a three-coating and three-baking process is used. This involves applying a polyurethane primer, followed by a layer of matching fluorocarbon topcoat, ink printing, and finally a coat of fluorocarbon varnish. The entire production process for printed color coated panels includes cooling, coiling, and shearing after drying and solidification of the coatings.
Color Coated Aluminum Coils
Color coated aluminum sheet coils are characterized by their long service life, lightweight, excellent surface finish, and high recycling value, offering significant economic benefits that meet the urgent demands of today's socio-economic and environmental developments.
Our factory's aluminum color coating production line is equipped with Germany's Siemens complete line control system. The core painting process utilizes advanced German roll coating technology and a twice-coated, twice-hot air-curing coating technology to precisely control coating thickness and curing quality.
In the chemical treatment process, the color aluminum adopts a neutral treatment agent, roller coating treatment, and hot air rapid drying, distinct from conventional dip coating methods, effectively mitigating environmental impact.
Furthermore, advanced chromium-free treatment liquids are used for surface treatment to meet stringent environmental protection standards globally.
During the curing process of the color coated aluminum plates, volatile components can be recycled and reused, facilitated by an advanced VOC defluorination system that enhances heat energy utilization efficiency, achieves zero emissions, and completely eliminates environmental pollution.
Coating Types for Wooden Printed Galvalume Steel Coils
Depending on the environmental conditions and intended use, different resin coatings can be selected:
Polyester (PE)
Silicon Modified Polyester (SMP)
High Durability Polyester (HDP)
Polyvinylidene Fluoride (PVDF)
| Thick | 0.14-2.0 mm |
| Width | 600-1500 mm |
| Coil ID | 508 / 610MM |
| Coil Weight | 3-8 Tons |
| Type Of Substruate | Hot dipped galvanized steel coil,galvalume steel coil,cold rolled steel |
| Coating Types | Top paint:PVDF,HDP,SMP,PE,PU Primer paint:Polyurethane,Epoxy,PE Back paint:Epoxy,Modified polyester |
| Standard | ASTM-A653; JIS G3302; EN10147;etc |
| Payment Terms | T/T, LC, Western Union, Paypal, O/A, DP |
| Regular Order | 25 tons or one container, for less quantity, to contact with us for details |
| Hardness | Soft hard(HRB60),medium hard(HRB60-85),full hard(HRB85-95) |
| Surface Structure | Regular spangle,Minimum spangle, Zero spangle, Big spangle |
| Surface Treatment | Chromated/Non-Chromated, Oiled/Non-oiled, Skin pass |
| Product Name | Color Coated Aluminum Coil |
| Length | 1000-11800mm |
| Width | 600~1250mm |
| Finish Treatment | Mill Finish, Coated, Polished, as You Request |
| Grade | 1100, 1050, 1060, 3003, 3004, 3005, 3104, 3105, 5005, 5052, 5754 etc. |
| Color | According to the RAL code |
| Application | The building industry, structural use, roofing, commercial use, household appliances, industry facilities, office buildings |
| Shipment Time | Within 15-20 workdays after receiving deposit or L/C |
| Products | Colored aluminum coil |
| Size | CUSTOMIZATION. Special sizes can be produced here. |
| Standard | GB/T 3880--2012 or ASTM B209 |
| Alloy | 1050 1060 1100 3003 3004 3105 5052 |
| Temper | O H12 H14 H16 H18 H19 H22 H24 H26 H28 H112 H32 |
| Thickness range | 0.1-3.0mm |
| Paint | PE, PVDF, Epoxy |
| Paint thickness | As customers' request. Usually, one layer is 15-18mic, and two layers are 25-28mic. |
| Color | As customers' request. Any color will be okay. Solid color, metallic color etc. |
| Film | Film coat to protect paint. |
| MOQ | Depends on size. Usually 3-6tons. |
| Production process | DC or CC |
| Certificate of Origin | CO, Form E, Form A, etc. |
| PRODUCT CATEGORY | Polyester PE Color coated Aluminum | Fluorocarbon / PVDF Color coated Aluminum |
| Aluminum thickness | 0.30-2.0mm | 0.30-2.0mm |
| Paint coating | Top ≥15μm | Top ≥25μm |
| thickness | Back≥5μm | Back≥5μm |
| MEK | ≥100 | ≥200 |
| T bending | ≤2T | ≤2T |
| Impact | 50kg.cm | 50kg.cm |
| Adhesion | 0 Grade | 0 Grade |
| Pencil Hardness | ≥2H | ≥2H |
| Boiling water proof | No change within 2 hours | No change within 2 hours |
| Typical Alloy | 1100, 1050, 1060, 3003, 3004, 3005, 3104, 3105 | |
| Typical Status | H14, H16, H18, H24, H26 | |
| Coating performance | |||||||
| CATEGORY | T Bending | Impacting | Salt spray test(hours) | MEK | Hardness | Gloss 60° | Color Tolerance ΔE |
| PE | ≤3T | ≥9 | ≥500 | ≥100 | ≥F | 10-85 | ≤0.8 |
| SMP | ≤3T | ≥9 | ≥500 | ≥100 | ≥F | 10-85 | ≤0.8 |
| HDP | ≤2T | ≥9 | ≥1000 | ≥100 | ≥HB | 10-85 | ≤0.8 |
| PVDF | ≤2T | ≥9 | ≥1000 | ≥100 | ≥HB | 10-85 | ≤0.8 |
We only choose the top-level paint suppliers for our pre-painted steel coils and sheets,
AkzoNobel, Sherwin-Williams Valspar, Beckers, PPG Industries, Nippon, KCC are our solid paint suppliers.
Their best paint materials decide our steel coils quality.
Delivery time: 30 days deliver to loading port
Shipment Methods: Container, Breakbulk, Railway, Trucks
