Electrolytic Tinplate Coil
>
|
|
| Place of Origin | CHINA |
| Brand Name | DBM |
| Certification | ISO9001, SGS, BV |
| Model Number | BA T3 |
Aerosol Tinplate Can Products Electrolytic Tin Plate Coils BA T4 2.8/2.8 High Strength
Tinned substrate steel is mostly low carbon mild steel, the carbon content is generally 0.03% ~ 0.13%. Before the development of continuous casting technology, mostly casting boiling steel and gland steel were used. Although these steels have good surface quality and can be rolled to tin-coated substrates, they cannot be used as tin-coated substrates with high forming properties due to the existence of component segregation during the casting and solidification of the ingot and the great difference in mechanical properties in the rolling direction and width direction. Since the rapid development of continuous casting technology in the 1970s, the continuous casting slab is suitable for improving the shape quality and forming stability of the tin plate because of its uniform chemical composition, small segregation and small fluctuation in mechanical properties. At present, the steel used in tinplate has basically been continuously cast.
| Steel Grade | Chemical composition, %, ≤ | |||||||||
| C | Si | Mn | S | P | Cu | Ni | Cr | Mo | ||
| D | 0.12 | 0.030 | 0.60 | 0.05 | 0.020 | 0.20 | 0.15 | 0.10 | 0.05 | |
| L | 0.13 | 0.030 | 0.60 | 0.05 | 0.015 | 0.06 | 0.04 | 0.06 | 0.05 | |
| MR | 0.13 | 0.030 | 0.60 | 0.05 | 0.020 | 0.20 | 0.20 | 0.10 | 0.05 | |
| MC | 0.12 | 0.030 | 0.70 | 0.05 | 0.15 | 0.20 | ||||
| SPCC | 0.12 | 0.05 | 0.5 | 0.035 | 0.035 | |||||
| SPCD | 0.10 | 0.03 | 0.45 | 0.030 | 0.035 | |||||
| N | At least 0.007% N is added to the L, MR And MC steel | |||||||||
We are the professional manufacturer in China with advanced technical equipments, first class inspection devices and substantial experience in production. It possesses integrated process lines including smelting, hot rolling, cold rolling and coating. The product catalogue covers ETP and TFS with an annual output over 1 million tons. Our tin mill products are widely sold and used throughout the world in application of packaging of food, beverage and industrial goods and enjoy high reputation in the international market.
Excellent Corrosion Resistance
By selecting a proper coating weight, appropriate corrosion resistance is obtained against container contents.
Excellent Paintability & Printability
Printing is beautifully finished using various lacquers and inks.
Excellent Solderability & Weldability
TIN PLATE is widely used for making various types of cans by soldering or welding.
Excellent Formability & Strength
By selecting a proper temper grade, appropriate formability is obtained for various applications as well as the required strength after forming.
Beautiful Appearance
Electrolytic ETP is characterized by its beautiful metallic luster. Products with various kinds of surface roughness are produced by selecting the surface finish of the substrate steel sheet.
|
GB/T2520, JIS G3303 |
EN10202 |
TARGET VALUE |
TOLERANCE RANGE |
YIELD STREGNTH/MPA |
TENSILE STRENGTH/MPA |
|
T-1 |
TS230 |
49 |
49±3 |
230±50 |
325±50 |
|
T-2 |
TS245 |
53 |
53±3 |
245±50 |
340±50 |
|
T-2.5 |
TS260 |
55 |
55±3 |
260±50 |
360±50 |
|
T-3 |
TS275 |
57 |
57±3 |
275±50 |
375±50 |
|
T-3.5 |
|
59 |
59±3 |
290±50 |
390±50 |
|
T-4 |
TH415 |
61 |
61±3 |
415±50 |
435±50 |
|
T-5 |
TH435 |
65 |
65±3 |
435±50 |
460±50 |
|
DR-7M |
TH520 |
71 |
71±3 |
520±50 |
540±50 |
|
DR-8 |
TS550/TH550 |
73 |
73±3 |
550±50 |
570±50 |
|
DR-8M |
TH580 |
73 |
73±3 |
580±50 |
590±50 |
|
DR-9 |
TH620 |
76 |
76±3 |
620±50 |
625±50 |
|
DR-9M |
|
77 |
77±3 |
660±50 |
|
|
DR-10 |
|
80 |
80±3 |
690±50 |
|
|
The hardness is the average value of 2 samples, allowing 1 of them to exceed the specified allowable range by 1 unit. |
|||||
|
a The yield strength is a reference value determined as required. b Yield strength is the average value of the two samples. The sample is P5 in GB/T 228, and the direction of the sample is transverse. c Due to the thickness thinning effect, the elongation is too low and the yield strength cannot be measured. In this case, the yield strength is replaced by the tensile strength. d For the tensile test, the width of the parallel part of the sample is (12.5±1) mm, and the standard distance L0=50mm. Before the test. The sample should be artificially aged for 20min at 200℃. |
|||||
|
Thickness |
Tolerance |
||
|
Negative Tolerance |
Tolerance |
Positive tolerance |
|
|
0.18～0.55 SR |
+1%～—3% |
+2%～—2% |
+0%～+3% |
|
0.15～0.34 DR |
+1%～—3% |
+2%～—2% |
+0%～+3% |
|
Remarks |
The internal control is set at-0.002mm of the thickness of the contract order. The measurement value of the midpoint in the width direction of the strip shall prevail. |
The internal control sets the thickness of the contract order thickness. The measurement value of the midpoint in the width direction of the strip shall prevail. |
The internal control is to set the thickness of the contract order at +0.003mm, and the measured value at the midpoint of the strip width direction shall prevail. |
|
1. The thickness of S1, S2, S3 surface and M surface shall be measured by the flat thickness meter. (The matt surface will be higher than the actual measurement due to surface roughness.) |
|||
|
Available Width |
Width Tolerance |
|
|
General order (normal production requirements) |
High-precision ordering |
|
|
750~1050mm |
+0～+3( aim +0～+1.5) |
+0～+2 (aim +0～+1.0) |
4. Product Standard
ETP orders are placed with Baosteel in accordance with Q/BQB 450-2009 standard which uses in a non-equivalent to JIS G 3303:2008, DIN EN 10202:2001, EN 10203 standards.
TFS orders are placed with Baosteel in accordance with Q/BQB 455-2009 standard which uses in a non-equivalent to JIS G 3315:2008, DIN EN 10202:2001, EN 10203 standards.
5. Usage Precautions for ETP
Modern industrial tinplate is usually a cold-rolled, low carbon sheet coated with commercial pure tin on both sides, which combines the strength and formability of steel with the corrosion resistance, weldability and appearance of tin. Tinplate is widely used in the food industry and a variety of containers, stamped products, packaging materials for non-food industry, such as food cans, spray cans, bottle caps, gas containing beverage cans, packaging materials and non-packaging materials (home appliances, toys, stationery, engineering).
Aerosol Tinplate Can
As is known, light can cause and accelerate oil oxidation, which reduces nutrition value of oil by destroying its vitamin A and D, and even more seriously, by generating harmful substances. And, oxygen in the air can also lead to food oil oxidation, resulting in decreased protein biomass and damaged vitamins. To avoid this, we have developed tinplate that has high opacity and excellent airtight seal, and can provide better protection for the contained oil, food, beverage, and so on. Hence, the oil tin can is ideal for packing lipids.
To provide the highest quality oil tinplate can, we implement rigid inspection on the whole process from material procurement to the final product delivery. In addition to strict monitoring on working procedures such as acid washing, reciprocal rolling, and degreasing, etc., our specialized personnel check our products through mechanical property tester and coating tester to ensure superior performance of our oil tin can. As a result, our oil tin can features strong corrosion resistance, high formability and easy welding, and you can thus feel secure in choosing our products.

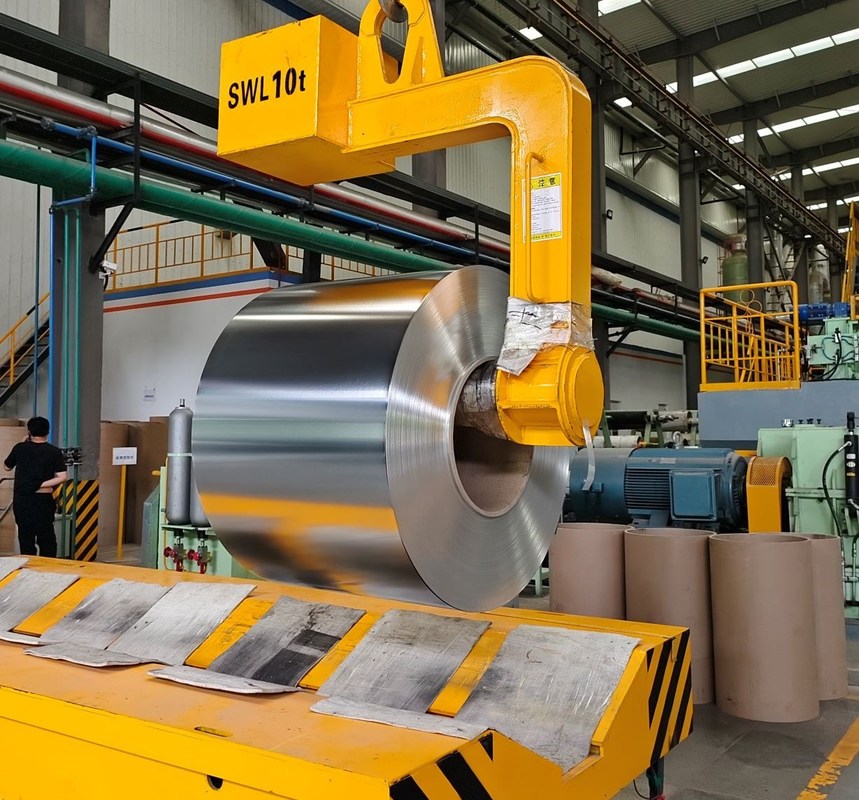

Offers coils and sheets, coil packed in a vertical form or a horizontal.
A label that indicates the manufacturing history is affixed to the outside of the packaging. In addition, a service card is contained inside.
With regard to types of packing and markings, please consult us.
