Electrolytic Tinplate Coil
>
|
|
| Place of Origin | CHINA |
| Brand Name | DBM |
| Certification | ISO9001, SGS, BV |
| Model Number | BA T3 |

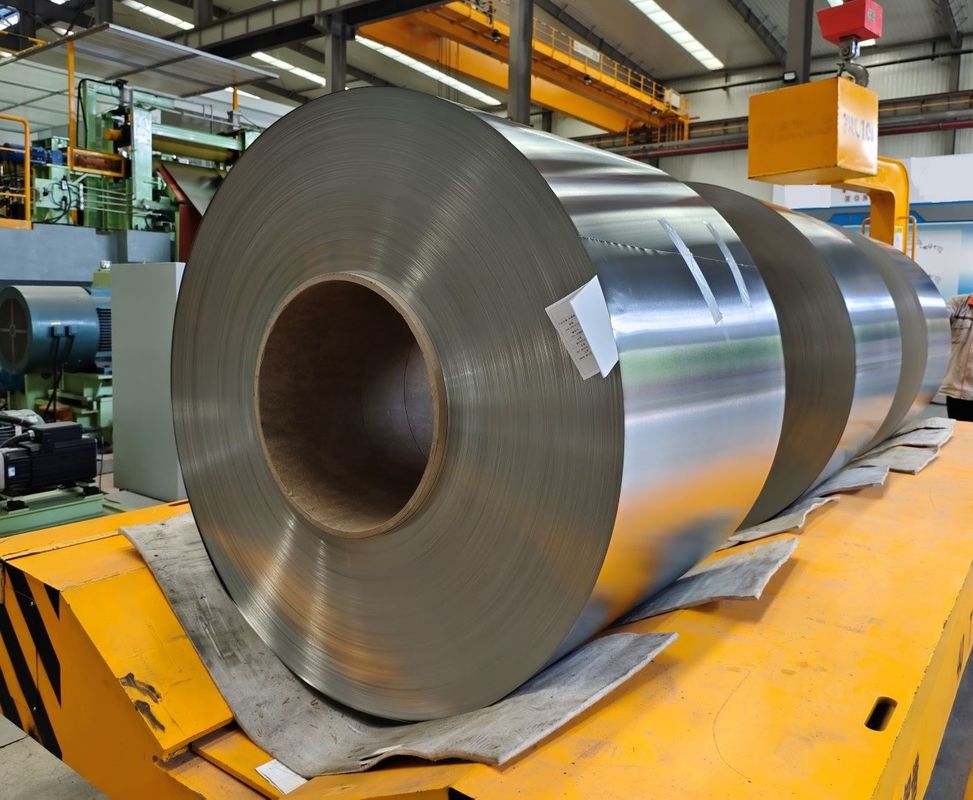

ETP Food Can JIS G3303 Customizable Electrolytic Tinplate Coil For Canning Industry
Tinned steel plate (commonly known as tinplate) is a steel product that can be stamped with a thin steel plate as the matrix, and is coated with tin on its surface and has a multi-layer protective film (layer). It has the characteristics of corrosion resistance, non-toxic, tasteless, surface gloss, light weight, high strength (relative to paper, wood, composite materials), easy to paint, easy to weld and process molding, and strong adaptability to environmental temperature. Therefore, more than 70% of the total output of tinned steel plates is used for food and beverage packaging. In addition, it is also the packaging and raw material shake of chemical and pharmaceutical, mechanical and electrical, hardware, telecommunications and other industries
Excellent Corrosion Resistance
By selecting a proper coating weight, appropriate corrosion resistance is obtained against container contents.
Excellent Paintability & Printability
Printing is beautifully finished using various lacquers and inks.
Excellent Solderability & Weldability
TIN PLATE is widely used for making various types of cans by soldering or welding.
Excellent Formability & Strength
By selecting a proper temper grade, appropriate formability is obtained for various applications as well as the required strength after forming.
Beautiful Appearance
Electrolytic ETP is characterized by its beautiful metallic luster. Products with various kinds of surface roughness are produced by selecting the surface finish of the substrate steel sheet.
|
GB/T2520, JIS G3303 |
EN10202 |
TARGET VALUE |
TOLERANCE RANGE |
YIELD STREGNTH/MPA |
TENSILE STRENGTH/MPA |
|
T-1 |
TS230 |
49 |
49±3 |
230±50 |
325±50 |
|
T-2 |
TS245 |
53 |
53±3 |
245±50 |
340±50 |
|
T-2.5 |
TS260 |
55 |
55±3 |
260±50 |
360±50 |
|
T-3 |
TS275 |
57 |
57±3 |
275±50 |
375±50 |
|
T-3.5 |
|
59 |
59±3 |
290±50 |
390±50 |
|
T-4 |
TH415 |
61 |
61±3 |
415±50 |
435±50 |
|
T-5 |
TH435 |
65 |
65±3 |
435±50 |
460±50 |
|
DR-7M |
TH520 |
71 |
71±3 |
520±50 |
540±50 |
|
DR-8 |
TS550/TH550 |
73 |
73±3 |
550±50 |
570±50 |
|
DR-8M |
TH580 |
73 |
73±3 |
580±50 |
590±50 |
|
DR-9 |
TH620 |
76 |
76±3 |
620±50 |
625±50 |
|
DR-9M |
|
77 |
77±3 |
660±50 |
|
|
DR-10 |
|
80 |
80±3 |
690±50 |
|
|
The hardness is the average value of 2 samples, allowing 1 of them to exceed the specified allowable range by 1 unit. |
|||||
|
a The yield strength is a reference value determined as required. b Yield strength is the average value of the two samples. The sample is P5 in GB/T 228, and the direction of the sample is transverse. c Due to the thickness thinning effect, the elongation is too low and the yield strength cannot be measured. In this case, the yield strength is replaced by the tensile strength. d For the tensile test, the width of the parallel part of the sample is (12.5±1) mm, and the standard distance L0=50mm. Before the test. The sample should be artificially aged for 20min at 200℃. |
|||||
|
Thickness |
Tolerance |
||
|
Negative Tolerance |
Tolerance |
Positive tolerance |
|
|
0.18～0.55 SR |
+1%～—3% |
+2%～—2% |
+0%～+3% |
|
0.15～0.34 DR |
+1%～—3% |
+2%～—2% |
+0%～+3% |
|
Remarks |
The internal control is set at-0.002mm of the thickness of the contract order. The measurement value of the midpoint in the width direction of the strip shall prevail. |
The internal control sets the thickness of the contract order thickness. The measurement value of the midpoint in the width direction of the strip shall prevail. |
The internal control is to set the thickness of the contract order at +0.003mm, and the measured value at the midpoint of the strip width direction shall prevail. |
|
1. The thickness of S1, S2, S3 surface and M surface shall be measured by the flat thickness meter. (The matt surface will be higher than the actual measurement due to surface roughness.) |
|||
|
Available Width |
Width Tolerance |
|
|
General order (normal production requirements) |
High-precision ordering |
|
|
750~1050mm |
+0～+3( aim +0～+1.5) |
+0～+2 (aim +0～+1.0) |
Typical Applications including:
Consumer Packaging and Industrial Packaging
TINPALTE
ETP is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP.
TFS
TFS are most frequently used for can tops, screw and lug caps, snap and press-on closures and shallow-drawn food cans.
in Electronics
– Electrodes, Cable tape, Magnetic screen covers, etc.
in Engineering
– Automotive oil filters, Automotive air filters, Gaskets, etc.
in Construction
– Gas meter internal components, Heat exchangers, etc.
Our food tinplate can offers a good source of iron for its users. Tinplate canned food, except few light color fruit and canned fruit, mainly adopts interior painted empty cans for improved corrosion resistance of containers. Under the electrochemical action of metal, a small quantity of iron dissolves out of enamel cans and exists as ferrous iron in the sealed canned food, ranging from 1ppm to 10 ppm, which is easy for people to absorb. Provided that there is 5ppm iron in every 350ml tinplate can, then each can of food can provides 1.75mg iron, which is about one tenth of 18mg daily iron intake by human body. In case of rich vitamin C contained in the canned fruit and vegetable juice, iron will be easier for assimilating. That is why this food tinplate can is so widely adopted for packaging food.
