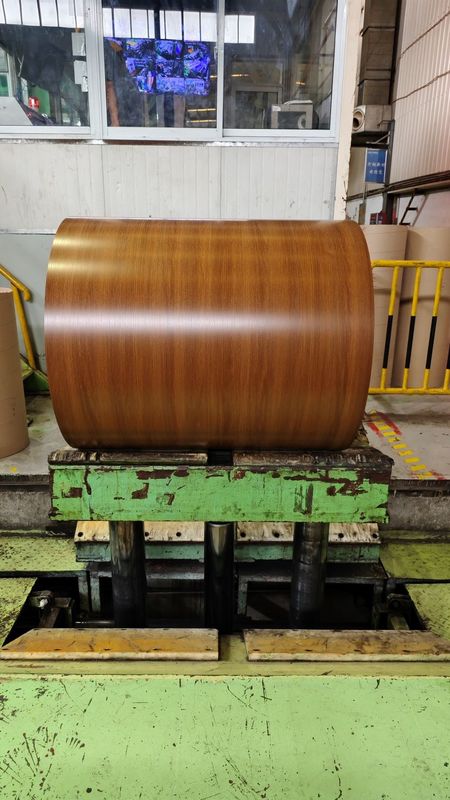

Grade 50 HDP 0.60mm Walnut Painted Galvalume Steel Coil

Grade50 HDP 30-Year Warranty 0.60mm Walnut Painted Galvalume Steel Coil

1. Classification by Substrate

Color coated plates can be made using various substrates, each offering distinct properties:

- Cold rolled sheet

- Hot-dip galvanized sheet

- Electro-galvanized sheet

- Alloying plate

- Galvanized aluminum plate

- Galvanized zinc alloy plate

- Tin plate

- Chrome plate

- Aluminum plate

2. Classification by Processing Technology

Based on the coating methods and processing steps, color coated plates can be classified as follows:

- Coating Methods:

- Roller coating method

- Spraying method

- Powder coating method

- Compound film method

- Printing method

- Coating and Baking Cycles:

- Single coating and baking

- Double coating and baking

- Triple coating and baking

- Quadruple coating and baking

- Embossing and Printing Types:

- Wood grain plate

- Marble grain plate

- Skin grain plate

- Cement mortar grain coating steel plate

Applications

1. Pre-painted Color Coated Aluminum Coil:

- Applications: Building facades, roofing, ceilings, curtain walls, interior decoration, signage, and packaging.

- Advantages: Ideal for applications where lightweight, corrosion resistance, and aesthetic flexibility are crucial.

2. Color Coated Steel Coil:

- Applications: Roofing, wall cladding, automotive components, appliances, and industrial equipment.

- Advantages: Preferred in applications requiring high structural strength and durability, such as industrial and construction projects.

Conclusion

Pre-painted color coated aluminum coils and color coated steel coils both offer unique benefits suited to different applications. Aluminum coils are ideal for applications where lightweight, corrosion resistance, and aesthetics are paramount. In contrast, steel coils provide superior strength and durability, making them suitable for more demanding structural applications. Understanding these differences is crucial for selecting the right material for specific needs and environments.

Detailed Parameters:

Coating performance
CATEGORY	T Bending	Impacting	Salt spray test(hours)	MEK	Hardness	Gloss 60°	Color Tolerance ΔE
PE	≤3T	≥9	≥500	≥100	≥F	10-85	≤0.8
SMP	≤3T	≥9	≥500	≥100	≥F	10-85	≤0.8
HDP	≤2T	≥9	≥1000	≥100	≥HB	10-85	≤0.8
PVDF	≤2T	≥9	≥1000	≥100	≥HB	10-85	≤0.8



Pre-Painted Galvalume Steel Coils
Commercial Quality Steel	ASTM A755M-03	EN10327-2004	JIS G 3322:2012
	CS	DX51D+AZ	CGLCC
Structural Quality Steel	SS GRADE 230	S220GD+AZ	CGLC340
	SS GRADE 255	S250GD+AZ	CGLC400
	SS GRADE 275	S280GD+AZ	CGLC440
	SS GRADE 340	S320GD+AZ	CGLC490
	SS GRADE 550	S350GD+AZ	CGLC570
		S550GD+AZ
Pre-Painted Galvanized Steel Coils
Commercial Quality Steel	ASTM A755M-03	EN10327-2004	JIS G 3312:2012
	CS	DX51D+Z	CGCC
Structural Quality Steel	SS GRADE 230	S220GD+Z	CGC340
	SS GRADE 255	S250GD+Z	CGC400
	SS GRADE 275	S280GD+Z	CGC440
	SS GRADE 340	S320GD+Z	CGC490
	SS GRADE 550	S350GD+Z	CGC570
		S550GD+Z
SPECFICATION
		PRE-PAINTED GALVANIZED STEEL COIL	PRE-PAINTED ALUZINC STEEL COIL
Thickness		0.15MM--1.50MM(BMT)	0.15MM--1.50MM(BMT)
Width		900MM-1340MM	900MM-1340MM
Zinc/AZ		30g/m2-275g/m2	30g/m2-185g/m2
Base Metal		Galvanized Steel Coil	Galvalume/ Aluzinc Steel Coil
Paint Coating System		POLYESTER(PE),RMP, SMP,Super-SMP, HDP,Super HDP, PVDF
Color		RAL / Customized
Coil weight		1.5MT-10MT
Coil ID		508MM OR 610MM
* HARD QUALITY GALVANIZED STEEL(HRB75-HRB90) AVAILABLE ON CUSTOMER'S REQUEST







Paint Suppliers & Partners:

We only choose the top-level paint suppliers for our pre-painted steel coils and sheets,

AkzoNobel, Sherwin-Williams Valspar, Beckers, PPG Industries, Nippon, KCC are our solid paint suppliers.

Their best paint materials decide our steel coils quality.

Package & Delivery Shipment :

Delivery time: 30 days deliver to loading port

Shipment Methods: Container, Breakbulk, Railway, Trucks
