Printech Color Coated Coil
>
|
|
| Place of Origin | China |
| Brand Name | Decho Building Materials |
| Certification | A Aertificate |
| Model Number | A |
Color coated sheets come in a vast array of over 600 varieties, but due to the diversity and lack of a unified classification system, they are generally categorized based on customary practices. Each manufacturer may have unique equipment, technologies, and product varieties, further complicating standardized classification. Here, we outline the general categories for clarity.
1. Classification by Substrate
Color coated plates can be made using various substrates, each offering distinct properties:
- Cold rolled sheet
- Hot-dip galvanized sheet
- Electro-galvanized sheet
- Alloying plate
- Galvanized aluminum plate
- Galvanized zinc alloy plate
- Tin plate
- Chrome plate
- Aluminum plate
2. Classification by Processing Technology
Based on the coating methods and processing steps, color coated plates can be classified as follows:
- Coating Methods:
- Roller coating method
- Spraying method
- Powder coating method
- Compound film method
- Printing method
- Coating and Baking Cycles:
- Single coating and baking
- Double coating and baking
- Triple coating and baking
- Quadruple coating and baking
- Embossing and Printing Types:

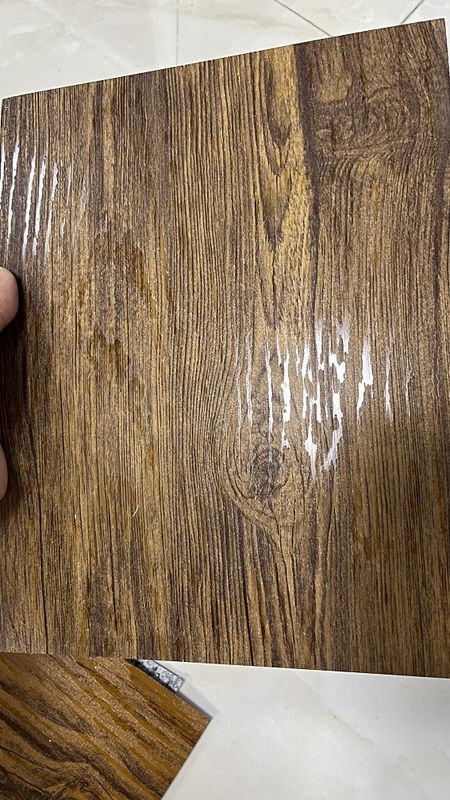

- Wood grain plate
- Marble grain plate
- Skin grain plate
- Cement mortar grain coating steel plate
3. Classification by Type of Coating
According to the type of paint used, color coated plates can be classified into:
- PVC coated steel
- Polyester coated steel
- Acrylic coated steel
- Fluorocarbon coated steel
- Silicone polyester coated steel
4. Classification by Coating Performance
Based on the performance characteristics of the organic coating, the plates can be classified as:
- High weather resistance coating plate
- High temperature resistant coating plate
- Self-extinguishing coating plate
- Sterilization coating plate
- Non-stick snow coating plate
- Fingerprint-resistant coating plate
- Self-lubricating coating plate
5. Classification by Special Coating and Use
Certain specialized coatings and applications give rise to specific categories:
- Epoxy zinc-rich coatings
- Organic coating on cold rolled steel substrate
- Surface flocking steel
- Special machine-coated laminates:
- Post-wood film board
- Sandwich panels
- Shock boards
This detailed classification helps in understanding the extensive range of color coated plates and their suitability for various applications in construction, home appliances, and industrial projects.
| Thick | 0.14-2.0 mm |
| Width | 600-1500 mm |
| Coil ID | 508 / 610MM |
| Coil Weight | 3-8 Tons |
| Type Of Substruate | Hot dipped galvanized steel coil,galvalume steel coil,cold rolled steel |
| Coating Types | Top paint:PVDF,HDP,SMP,PE,PU Primer paint:Polyurethane,Epoxy,PE Back paint:Epoxy,Modified polyester |
| Standard | ASTM-A653; JIS G3302; EN10147;etc |
| Payment Terms | T/T, LC, Western Union, Paypal, O/A, DP |
| Regular Order | 25 tons or one container, for less quantity, to contact with us for details |
| Hardness | Soft hard(HRB60),medium hard(HRB60-85),full hard(HRB85-95) |
| Surface Structure | Regular spangle,Minimum spangle, Zero spangle, Big spangle |
| Surface Treatment | Chromated/Non-Chromated, Oiled/Non-oiled, Skin pass |
| Pre-Painted Galvalume Steel Coils | |||
| Commercial Quality Steel | ASTM A755M-03 | EN10327-2004 | JIS G 3322:2012 |
| CS | DX51D+AZ | CGLCC | |
| Structural Quality Steel | SS GRADE 230 | S220GD+AZ | CGLC340 |
| SS GRADE 255 | S250GD+AZ | CGLC400 | |
| SS GRADE 275 | S280GD+AZ | CGLC440 | |
| SS GRADE 340 | S320GD+AZ | CGLC490 | |
| SS GRADE 550 | S350GD+AZ | CGLC570 | |
| S550GD+AZ | |||
| Pre-Painted Galvanized Steel Coils | |||
| Commercial Quality Steel | ASTM A755M-03 | EN10327-2004 | JIS G 3312:2012 |
| CS | DX51D+Z | CGCC | |
| Structural Quality Steel | SS GRADE 230 | S220GD+Z | CGC340 |
| SS GRADE 255 | S250GD+Z | CGC400 | |
| SS GRADE 275 | S280GD+Z | CGC440 | |
| SS GRADE 340 | S320GD+Z | CGC490 | |
| SS GRADE 550 | S350GD+Z | CGC570 | |
| S550GD+Z | |||
| SPECFICATION | |||
| PRE-PAINTED GALVANIZED STEEL COIL | PRE-PAINTED ALUZINC STEEL COIL | ||
| Thickness | 0.15MM--1.50MM(BMT) | 0.15MM--1.50MM(BMT) | |
| Width | 900MM-1340MM | 900MM-1340MM | |
| Zinc/AZ | 30g/m2-275g/m2 | 30g/m2-185g/m2 | |
| Base Metal | Galvanized Steel Coil | Galvalume/ Aluzinc Steel Coil | |
| Paint Coating System | POLYESTER(PE),RMP, SMP,Super-SMP, HDP,Super HDP, PVDF | ||
| Color | RAL / Customized | ||
| Coil weight | 1.5MT-10MT | ||
| Coil ID | 508MM OR 610MM | ||
| * HARD QUALITY GALVANIZED STEEL(HRB75-HRB90) AVAILABLE ON CUSTOMER'S REQUEST | |||
| Coating performance | |||||||
| CATEGORY | T Bending | Impacting | Salt spray test(hours) | MEK | Hardness | Gloss 60° | Color Tolerance ΔE |
| PE | ≤3T | ≥9 | ≥500 | ≥100 | ≥F | 10-85 | ≤0.8 |
| SMP | ≤3T | ≥9 | ≥500 | ≥100 | ≥F | 10-85 | ≤0.8 |
| HDP | ≤2T | ≥9 | ≥1000 | ≥100 | ≥HB | 10-85 | ≤0.8 |
| PVDF | ≤2T | ≥9 | ≥1000 | ≥100 | ≥HB | 10-85 | ≤0.8 |
We only choose the top-level paint suppliers for our pre-painted steel coils and sheets,
AkzoNobel, Sherwin-Williams Valspar, Beckers, PPG Industries, Nippon, KCC are our solid paint suppliers.
Their best paint materials decide our steel coils quality.
Delivery time: 30 days deliver to loading port
Shipment Methods: Container, Breakbulk, Railway, Trucks
