Textured Matt Prepainted Steel
>
|
|
| Place of Origin | China |
| Brand Name | Decho |
| Certification | ISO9001 |
| Model Number | Grade 50 / S350GD |
40 Years Warranty AZ150 PPGL Matt Textured Steel Exterior Cladding Corrugated Sheet

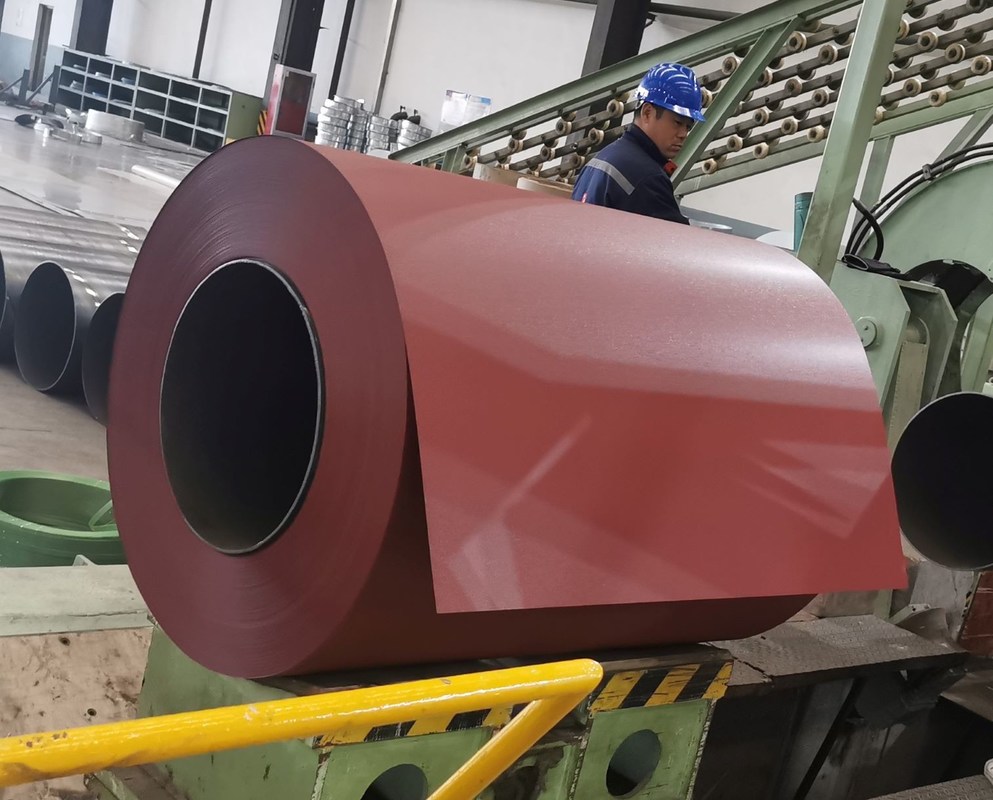

Matt Textured Colour Coated Steel Sheet
Matt Textured colour coated steel plate is a hot-dip galvanized alloy steel plate as a substrate, after the surface of continuous roller coating production method, the use of adding special additives to the coil topcoat, after baking to produce like a fishing net-like pattern effect, can be professionally customized according to the customer's requirements of a variety of different sizes, different depths and shades of different colours of the texture pattern.
Textured steel materials are used across a wide range of industries and applications due to their unique combination of aesthetic appeal, durability, and functional benefits. Here are some key areas where textured steel materials are commonly used:
Architectural and Building Applications
- Exterior Cladding: Textured steel is often used for building façades, giving a modern, sleek appearance while offering enhanced durability against weather conditions.
- Roofing: Textured steel roofing is popular due to its aesthetic qualities, glare reduction, and increased resistance to scratches and dents. This is particularly common in residential and commercial buildings.
- Wall Panels: Interior wall panels in industrial or commercial spaces benefit from textured steel for both durability and visual interest.
| Pre-Painted Galvalume Steel Coils | |||
| Commercial Quality Steel | ASTM A755M-03 | EN10327-2004 | JIS G 3322:2012 |
| CS | DX51D+AZ | CGLCC | |
| Structural Quality Steel | SS GRADE 230 | S220GD+AZ | CGLC340 |
| SS GRADE 255 | S250GD+AZ | CGLC400 | |
| SS GRADE 275 | S280GD+AZ | CGLC440 | |
| SS GRADE 340 | S320GD+AZ | CGLC490 | |
| SS GRADE 550 | S350GD+AZ | CGLC570 | |
| S550GD+AZ | |||
| Pre-Painted Galvanized Steel Coils | |||
| Commercial Quality Steel | ASTM A755M-03 | EN10327-2004 | JIS G 3312:2012 |
| CS | DX51D+Z | CGCC | |
| Structural Quality Steel | SS GRADE 230 | S220GD+Z | CGC340 |
| SS GRADE 255 | S250GD+Z | CGC400 | |
| SS GRADE 275 | S280GD+Z | CGC440 | |
| SS GRADE 340 | S320GD+Z | CGC490 | |
| SS GRADE 550 | S350GD+Z | CGC570 | |
| S550GD+Z | |||
| SPECFICATION | |||
| PRE-PAINTED GALVANIZED STEEL COIL | PRE-PAINTED ALUZINC STEEL COIL | ||
| Thickness | 0.15MM--1.50MM(BMT) | 0.15MM--1.50MM(BMT) | |
| Width | 900MM-1340MM | 900MM-1340MM | |
| Zinc/AZ | 30g/m2-275g/m2 | 30g/m2-185g/m2 | |
| Base Metal | Galvanized Steel Coil | Galvalume/ Aluzinc Steel Coil | |
| Paint Coating System | POLYESTER(PE),RMP, SMP,Super-SMP, HDP,Super HDP, PVDF | ||
| Color | RAL / Customized | ||
| Coil weight | 1.5MT-10MT | ||
| Coil ID | 508MM OR 610MM | ||
| * HARD QUALITY GALVANIZED STEEL(HRB75-HRB90) AVAILABLE ON CUSTOMER'S REQUEST | |||
We only choose the top-level paint suppliers for our pre-painted steel coils and sheets,
AkzoNobel, Sherwin-Williams Valspar, Beckers, PPG Industries, Nippon, KCC are our solid paint suppliers.
Their best paint materials decide our steel coils quality.
Delivery time: 30 days deliver to loading port
Shipment Methods: Container, Breakbulk, Railway, Trucks
