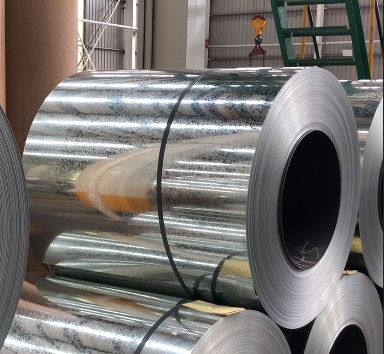

DX51D Grade Hot Dipped Galvanized Steel Coils Z160 Chromated Free

DX51D Grade Hot Dipped Galvanized Steel Coils For Commercial use with ISO Approval Z160

Specifications of Galvanized Steel Coils that We Can Provide :

1) Standard: JIS G3302 1998, ASTM A653M/A924M 2004, all according to the customer’s request
2) Grade: SGCC, SGCH,DX51D, Q195,Q235 all according to the customer’s request

3) Capacity: about 12000 tons per month
4) Thickness: from 0.13mm to 2mm, all available
5) Width: from 600mm to 1250mm, regular size:750-762mm,900-914mm,1000mm,1200mm,1219-1250mm all available
6) Coil ID: 508mm
7) Coil weight: from 2-10MT, according to the customer’s request
8) Zinc coating weight: 40g/m2-275g/m2
9) Spangle: regular spangle,big spangle, small spangle and zero spangle
10) Surface treatment: Chemical passivating, oils, passivating oils,skin passed
11) Edge: mill edge, cut edge
12) Min trial order 25 ton each thickness

Applications of Our Galvanized Steel Coils :

1.Construction and building: roofing; ventilating duct; handrail; partition panel,etc.
2.Further processing: coating base plate.
3.Electric appliance: refrigerator; washing machine; recorder; microwave, etc.
