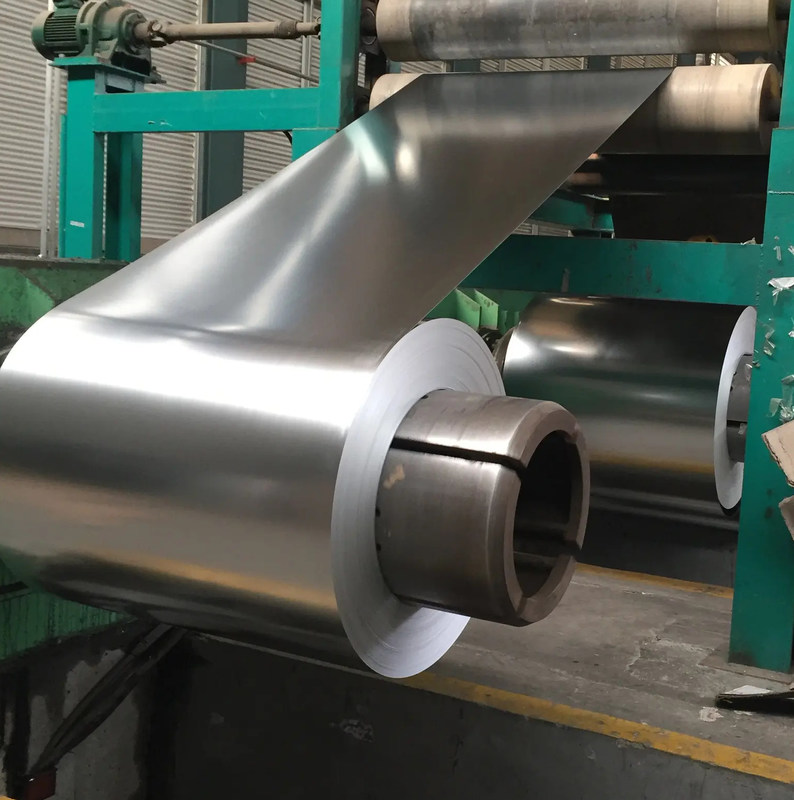

S550GD SGC570 Structural Grade Light Steel House Building Zero Spangle Galvanized Steel Slit Coils Z275 Z220 Z180
INTRODUCTION:
The products of galvanized steel sheet and coils are mainly used in such industries as construction industry, light industry, automobile industry, agriculture-livestock-fishery industries and commercial industry etc. For construction industry, galvanized steel sheet can be used to produce the anti-corrosive roof panels and roof grille etc. For industrial and civil construction usage. For light industry, producing appliance housings, civil chimneys and kitchenwares etc. For automobile industry, producing anti-corrosive auto parts for cars etc. For agriculture-livestock-fishery industry, producing appliances for storage and transportation of grain, frozen processing appliances for meat and aquatic products and so on. For commercial industry, producing appliances for storage and transportation of goods and materials, packaging appliances and so on.
Compliance and Applications
Hot-Dip Galvanized Steel Coil (GI) Overview
Hot-dip galvanized steel coil (GI) is produced by passing a fully hardened steel sheet, which has undergone pickling and rolling processes, through a zinc pot. This process coats the surface with a zinc film. Zinc's properties impart excellent corrosion resistance, paintability, and workability to the steel. Typically, the processes and specifications for hot-dip galvanized steel sheet and galvanized steel coil are essentially identical.
Characteristics and Benefits of Galvanized Steel
Galvanized steel is mild steel coated with a layer of zinc. The zinc coating offers cathodic protection to the underlying steel, meaning that if the surface is damaged, the zinc will corrode before the steel does, thereby protecting it from corrosion. Galvanized steel is extensively used in the building sector, automotive industry, agriculture, and other areas where steel needs protection from corrosion.
Hot-Dip Galvanizing Process (HDG)
Hot-Dip Galvanizing (HDG) is a process where zinc bonds to steel at the molecular level to produce a four-layer corrosion-resistant finish. The first three layers consist of zinc-iron alloy layers that are actually harder than the base steel. The fourth, or top layer, is pure zinc. This multi-layered structure ensures long-lasting durability and protection against corrosion.
Main characteristics of galvanised steel
Corrosion protection: 13 years for heavy industrial areas, 50 years for marine, 104 years for suburban areas and 30 years for urban areas.
Inexpensive: Hot dip galvanising costs less than other coatings.
Reliable: The zinc coating is metallurgically bonded to the steel and forms part of the steel surface, making the coating more durable.
Toughness: the galvanised steel layer forms a special metallurgical structure that can withstand mechanical damage during transport and use.
Comprehensive protection: every part of the coating can be galvanised and is fully protected even in depressions, sharp corners and hidden areas.
Saving time and effort: the galvanising process is faster than other coating methods.
|
THICKNESS(mm) |
0.25~1.2 |
SURFACE QUALITY LEVEL |
FB/ FC |
|
WIDTH(mm) |
800~1300 |
SURFACE TREATMENT |
C/R/C5/A/O/U |
|
ZINC COATING(g/㎡) |
60~275 |
Scope of application |
Refrigerator, washing machine, air-conditioner, microwave oven, lighting, television, audio-visual, etc. |
Structural Grade Light Steel House Building
| Index |
Regular spangle Galvanized Steel Coil/Sheets |
Zero spangle Galvanized Steel Coil/Sheets |
| Thickness | 0.13-2.50mm | 0.20-2.0mm |
| Width | 600~1500mm | 600~1500mm |
| Zinc Coating | Z30~Z400 g/㎡ | Z30~Z275 g/㎡ |
| Surface Treatment |
Passivated / Chromated 6+,3+, Free; Oiled |
Skin passed, Chromated 6+, 3+, Free Oiled, AFP (anti-finger print) |
| Steel Grade |
DX51D/52D/53D/ S250GD/280GD/350GD/550GD ASTM A653M, SS255-SS550 JIS G3302-SGCC, SGCH (Full hard-G550) |
DX51D/52D/53D/ S250GD/280GD/350GD/550GD ASTM A653M, SS255-SS550 JIS G3302-SGCC, SGCH (Full hard-G550) |
| Coil I.D. | 508 / 610 mm | 508 / 610 mm |
| Coil weight | 2 ~ 20 tons | 2 ~ 20 tons |
| Packaging |
Standard export packing ( Eye to Side) Vertical Packing ( Eye to Sky) with wooden pallet Horizontal Packing ( Eye to Side) with wooden pallet |
|
| MOQ. | 16 tons | 16 tons |
| Loading port | Tianjin / Qingdao / Rizhao port | |
| Usage | Purlins, light steel frame, ventilation duct, downpipe, round pipe, square pipe, roof panel, corrugated sheets. |
Coated steel coil production, household appliances ( pre-coated metal PCM) Roof panel, corrugated sheets |
Construction Application:
