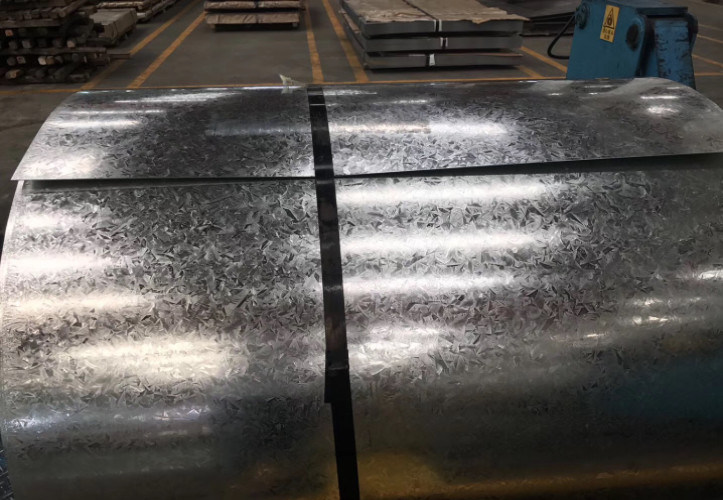

Big Spangle Galvanised Steel Coil Roll 1200mm For C Beam Keel Frame

Big Spangle Galvanised Steel Coil Roll 1200mm For C Beam Keel Frame

Big Spangle Galvanised Steel Coil Roll 1200mm For C Beam Keel Frame

Place of Origin	China
Brand Name	Decho
Certification	Mill Test Certificate
Model Number	Hot-dip galvanized steel

Product Details

Width:

1200mm

Surface:

Big Spangle

Coil ID.:

508mm/ 610mm

Coil Weight:

2 Tons~16 Tons

Packaing:

Horizontal Package With Wooden Pallet

Packing:

Standard Export Sea-worthy Packing

Highlight:

Big Spangle galvanised steel coil

,

galvanised steel coil 1200mm

,

galvanised steel roll 1200mm

Payment & Shipping Terms

Minimum Order Quantity

16 tons

Price

Usd 680~800

Packaging Details

Horizontal package With Wooden Pallet

Delivery Time

30~45 days

Payment Terms

L/C, T/T

Supply Ability

800 tons per day

Product Description

Z120 1.2mm Bright Big Spangle Hot-dip galvanised steel GI coils for C-beam keel frame and purlin

Product details

According to the European Standard EN 10346:2015, the dimensions of hot-dip galvanized zinc spangle can be divided into normal spangle and minimized spangle.

The normal spangle is the size and shape of the zinc grains formed after normal solidification of the zinc solution, while the spangle without zinc (also known as the minimized spangle) is the size and shape of the zinc grains obtained by special control of the zinc solidification process. If the user wishes to specify the size of the zinc flower, this should be negotiated at the time of ordering.

There are many factors that affect the size of the zinc flower. When the composition of the zinc liquid has the conditions for the formation of the zinc flower, the following factors have an effect on the size of the zinc flower:

(1) Raw material: the thicker the raw steel plate, the smaller the surface roughness, the larger the zinc flower.

(2) Cooling speed: the faster the cooling speed, the shorter the crystal growth time, the smaller the zinc flower.

(3 ) The number of nuclei: the size of the zinc flower and the number of zinc flower nuclei have a close relationship. When the steel base surface roughness or poor surface cleanliness, the zinc flower is relatively small. Zinc grain formation on the steel base, the more nuclei, the smaller the zinc flower, small zinc flower production process spray water mist method makes use of this principle.

(4) Other factors (production environment, etc.)

Galvanized steel coil is used in a wide range of applications and has the advantage of a long corrosion protection period. It is mainly used as a building and substrate for household appliances, office panels, roofing panels, automotive panels, and pre-painted steel coils.

Automotive Steel Sheet

To use automotive steel sheet must first be stamped and formed, the steel sheet is stamped into parts of the desired shape and size.

Spot welding is widely used in manufacturing, especially in the automotive industry, as an important welding method for joining thin plates.

Galvanized Roof Sheet

The performance requirements of galvanized roofing sheets mainly include the mechanical properties of the material (tensile strength, yield strength, elongation), coating properties (coating type, coating thickness and coating adhesion)

Home Appliance Office Board

Including air conditioners, washing machines, refrigerators, copiers, etc. Household galvanized sheets are mainly used for general forming applications and stamping.

Substrate

Another use for galvanized steel coils is as a substrate for pre-painted steel coils. Pre-painted steel coils are more durable than galvanized coils as they have a polyethylene coating.

Standard	JIS / EN / ASTM Standard
Grades	SGCC/SGCD/SGCE,SGHC,SGC280GD/SGC340/SGC400/SGC440/SGC490/SGC570
	S220GD/S250GD/S280GD/S320GD/S350GD/S550GD
	SS230/SS250/SS275/SS340/SS380/SS410/SS480/SS550
	A653 CS-A/ CS-B, ASTM A653Gr.33/Gr.37/Gr.40/Gr.50/Gr.80,
	DX51D/DX52D/DX53D/DX54D/DX56D etc.
	H220PD/H300PD/H180YD/H200YD/H260YD
	H180BD/H220BD/H260BD/H300BD
	H260LAD/H340LAD/H420LAD
	DP590/DP780
Coating	Z60-Z450 or G40/G60/G90/G120/G150
Spangle	Regular spangle / Minimized spangle / Zero spangle
Sizes	Thickness:0.12mm-4.5mm Width: 900mm-1500mm

Big Spangle Galvanised Steel Coil Roll 1200mm For C Beam Keel Frame 0

Big Spangle Galvanised Steel Coil Roll 1200mm For C Beam Keel Frame 2

Tags:

Z120 zinc coated galvanized steel sheet,

minimum spangle galvanized steel 0.75x1250mm,

hot dip galvanized steel coils 0.75x1250mm
