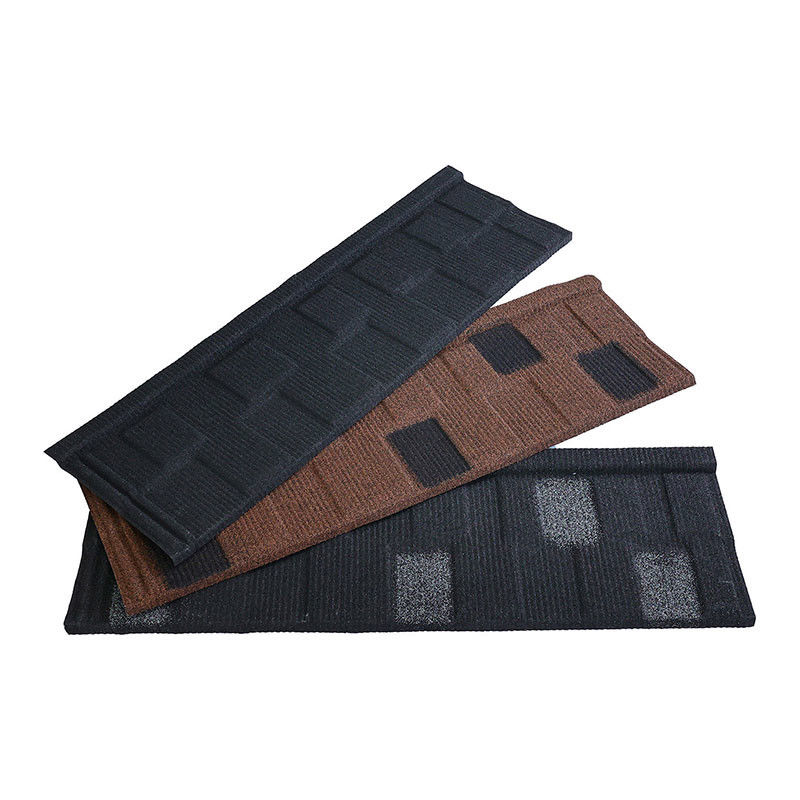

Metal Stone Coated Roof Tile Shingle Design AZ100 Aluzinc Base Metal
  • Metal Stone Coated Roof Tile Shingle Design AZ100 Aluzinc Base Metal
  • Metal Stone Coated Roof Tile Shingle Design AZ100 Aluzinc Base Metal
  • Metal Stone Coated Roof Tile Shingle Design AZ100 Aluzinc Base Metal
  • Metal Stone Coated Roof Tile Shingle Design AZ100 Aluzinc Base Metal

Metal Stone Coated Roof Tile Shingle Design AZ100 Aluzinc Base Metal

Place of Origin China
Brand Name Decho Building Materials
Certification MTC
Model Number Bond Tile ALuzinc Steel
Product Details
Material:
AFP GL AZ70
Size:
1340*420mm
Specification:
Alu-Zinc Steel Plate, Color Stone Chips
Thickness:
0.4mm
Color:
Customized
Quality Warranty:
50 Years
Tile Type:
Elite Tile, Classical Tile, Shingle Tile, Roman Tile
MOQ:
2000 Pcs
Installation Method:
Interlocking System
Certifications:
ISO9001, CE, SGS
Origin:
Shandong, China
Delivery:
7-15 Days
Coating:
AZ40
Base Metal:
0.40mm Aluzinc Steel
Weight:
2.8kg/pc
Item Name:
Milano Tile
Main Market:
South Africa
Fire Resistance:
Class A (highest Level)
Surface:
Classic Metal Tile / Bevel Edge Tile
Az Coating:
AZ30-AZ150
Dimension:
1340*420mm
Package:
400-700 Pieces / Pallet
Highlight:

Shingle Stone Coated Roof Tile

,

AZ100 Stone Coated Roof Tile

,

Shingle stone coated metal roofing tiles

Payment & Shipping Terms
Minimum Order Quantity
1 container
Price
US $2.30-3.30 / Piece
Packaging Details
Export Wooden Pallets
Delivery Time
7-15days
Payment Terms
L/C, T/T
Supply Ability
10000pieces/Day
Product Description

Decho Colored Stone metal tile is a new high-grade roofing material, which is produced by high technology, with aluminum-zinc plated steel plate with excellent anti-corrosion performance as the substrate, acrylic resin with strong weather resistance as the adhesive and colored natural gravel as the surface layer. Because of its beauty, lightness, durability and environmental protection, it has become an international roofing material product in recent years, and some domestic buildings have already started to use it.



Stone coated metal tiles are an innovative and advanced roofing material developed through high-tech processes. These tiles use aluminum zinc-coated steel sheets as the base, water-based acrylic esters as the adhesive, sintered colored sand for the surface layer, and a highly weather-resistant acrylic resin as the outermost layer, similar to a protective paint. Thanks to their aesthetic appeal, lightweight design, durability, and environmental friendliness, stone coated metal tiles have become a leading choice for roofing materials worldwide, especially in high-end architectural projects.



Shingle Design - Stone Coated Metal Roofing Sheets

If you admire the look of asphalt shingles but desire enhanced performance, superior durability, and exceptional strength, shingle-style stone coated metal roofing tiles are an ideal choice. These tiles are three times lighter than traditional asphalt shingles, eliminating the need for additional support structures such as extra trusses. This lightweight design not only reduces construction costs but also enhances the overall value of your home.



Shingle tiles are known for their vibrant aesthetic appeal, especially when you opt for two-tone color patterns that add depth and character to your roof. Additionally, you can select from a wide range of single bold or neutral colors, allowing you to customize your roof to match your personal style. The installation process is straightforward, with concealed fasteners ensuring a watertight seal. Despite featuring distinct ridges, these shingles are designed to interlock seamlessly, effectively keeping out the elements and resisting wind uplift.



Metal Stone Coated Roof Tile Shingle Design AZ100 Aluzinc Base Metal 0Metal Stone Coated Roof Tile Shingle Design AZ100 Aluzinc Base Metal 1Metal Stone Coated Roof Tile Shingle Design AZ100 Aluzinc Base Metal 2Metal Stone Coated Roof Tile Shingle Design AZ100 Aluzinc Base Metal 3







Product Description



TYPE Model No. DK801
Bond Tile / Classic Tile Base Metal Thickness 0.30-0.70mm
Aluzinc Metal Coating AZ30-AZ150 g/㎡
Tile Size 1340mm*420mm
Effective Size 1290mm*370mm
Coverage Area 0.477 ㎡
Tiles / SQM 2.1 pcs

TYPE Model No. DK802
Modern Classic Tile/ Bevel Edge Tile Base Metal Thickness 0.30-0.70mm
Aluzinc Metal Coating AZ30-AZ150 g/㎡
Tile Size 1340mm*420mm
Effective Size 1290mm*370mm
Coverage Area 0.477 ㎡
Tiles / SQM 2.1 pcs

TYPE Model No. DK803
Shingle Tile Base Metal Thickness 0.30-0.70mm
Aluzinc Metal Coating AZ30-AZ150 g/㎡
Tile Size 1340mm*420mm
Effective Size 1290mm*370mm
Coverage Area 0.477 ㎡
Tiles / SQM 2.1 pcs

TYPE Model No. DK804
Roman Tile / Rainbow Tile Base Metal Thickness 0.30-0.70mm
Aluzinc Metal Coating AZ30-AZ150 g/㎡
Tile Size 1300mm*420mm
Effective Size 1250mm*370mm
Coverage Area 0.462 ㎡
Tiles / SQM 2.3 pcs

TYPE Model No. DK805
Groove Tile Base Metal Thickness 0.30-0.70mm
Aluzinc Metal Coating AZ30-AZ150 g/㎡
Tile Size 1300mm*420mm
Effective Size 1250mm*370mm
Coverage Area 0.462 ㎡
Tiles / SQM 2.3 pcs

TYPE Model No. DK806
Milano Tile Base Metal Thickness 0.30-0.70mm
Aluzinc Metal Coating AZ30-AZ150 g/㎡
Tile Size 1340mm*420mm
Effective Size 1290mm*370mm
Coverage Area 0.477 ㎡
Tiles / SQM 2.1 pcs

TYPE Model No. DK807
Elite Tile / South Arica Tile Base Metal Thickness 0.30-0.70mm
Aluzinc Metal Coating AZ30-AZ150 g/㎡
Tile Size 1700mm*420mm
Effective Size 1650mm*370mm
Coverage Area 0.60 ㎡
Tiles / SQM 1.67 pcs

TYPE Model No. DK808
Makuti Grained Tile / Wood Grain Tile Base Metal Thickness 0.30-0.70mm
Aluzinc Metal Coating AZ30-AZ150 g/㎡
Tile Size 1340mm*420mm
Effective Size 1290mm*370mm
Coverage Area 0.477 ㎡
Tiles / SQM 2.1 pcs

TYPE Model No. DK809
Wave Tile Base Metal Thickness 0.30-0.70mm
Aluzinc Metal Coating AZ30-AZ150 g/㎡
Tile Size 1300mm*420mm
Effective Size 1250mm*370mm
Coverage Area 0.462 ㎡
Tiles / SQM 2.3 pcs

TYPE Model No. DK810
Stone Graine Tile Base Metal Thickness 0.30-0.70mm
Aluzinc Metal Coating AZ30-AZ150 g/㎡
Tile Size 1340mm*420mm
Effective Size 1290mm*370mm
Coverage Area 0.477 ㎡
Tiles / SQM 2.1 pcs

TYPE Model No. DK811
Long Span Bond Tile Base Metal Thickness 0.30-0.70mm
Aluzinc Metal Coating AZ30-AZ150 g/㎡
Tile Size 920mm*2340mm
Effective Size 828mm*2250mm
Coverage Area 1.863 ㎡
Length Customized

TYPE Model No. DK812
Long Span Corrugated Tile Base Metal Thickness 0.30-0.70mm
Aluzinc Metal Coating AZ30-AZ150 g/㎡
Tile Size 920mm*2340mm
Effective Size 840mm*2280mm
Coverage Area 1.91 ㎡
Length Customized



Metal Stone Coated Roof Tile Shingle Design AZ100 Aluzinc Base Metal 4Metal Stone Coated Roof Tile Shingle Design AZ100 Aluzinc Base Metal 5Metal Stone Coated Roof Tile Shingle Design AZ100 Aluzinc Base Metal 6Metal Stone Coated Roof Tile Shingle Design AZ100 Aluzinc Base Metal 7
